O.T. Tables

  • Operating Tables

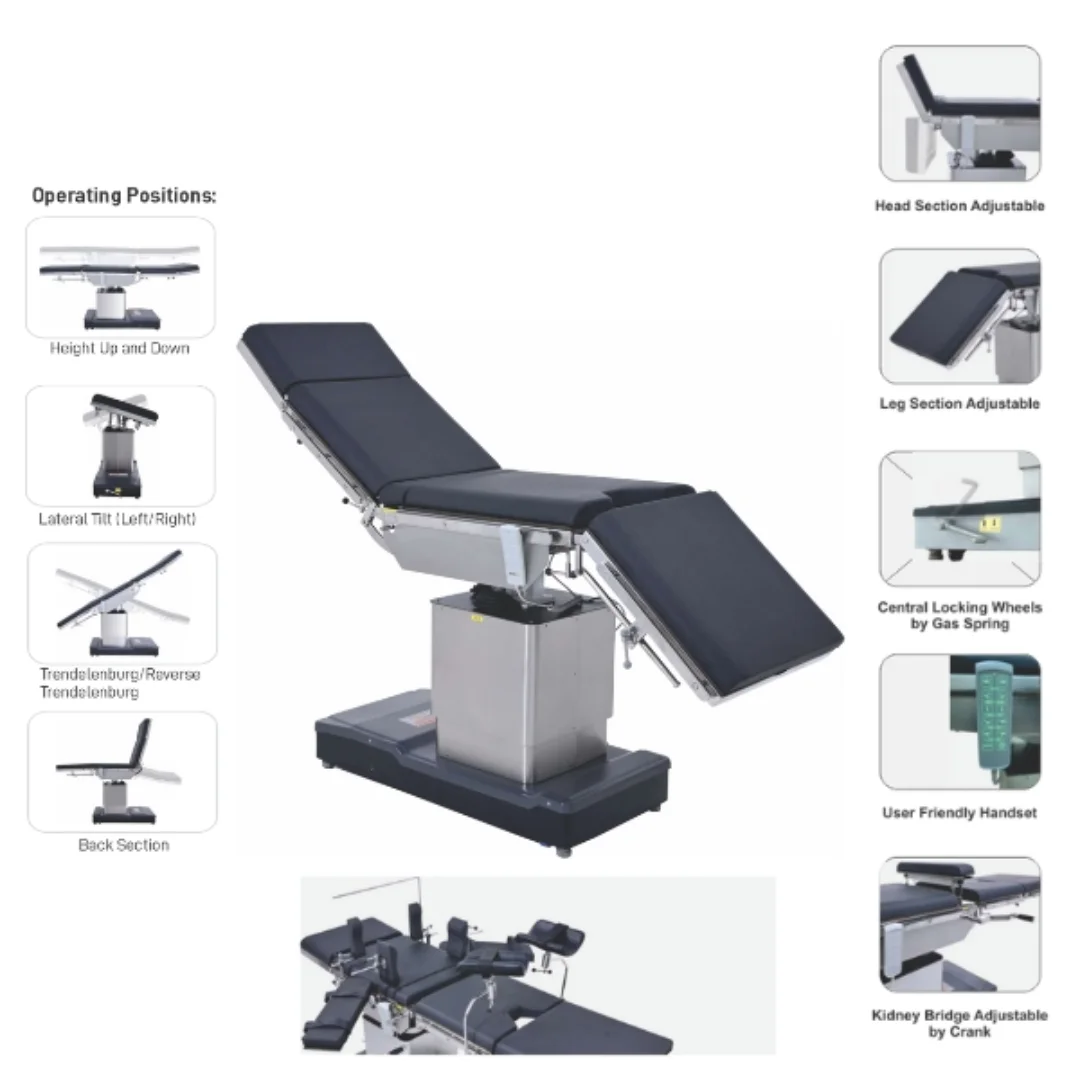

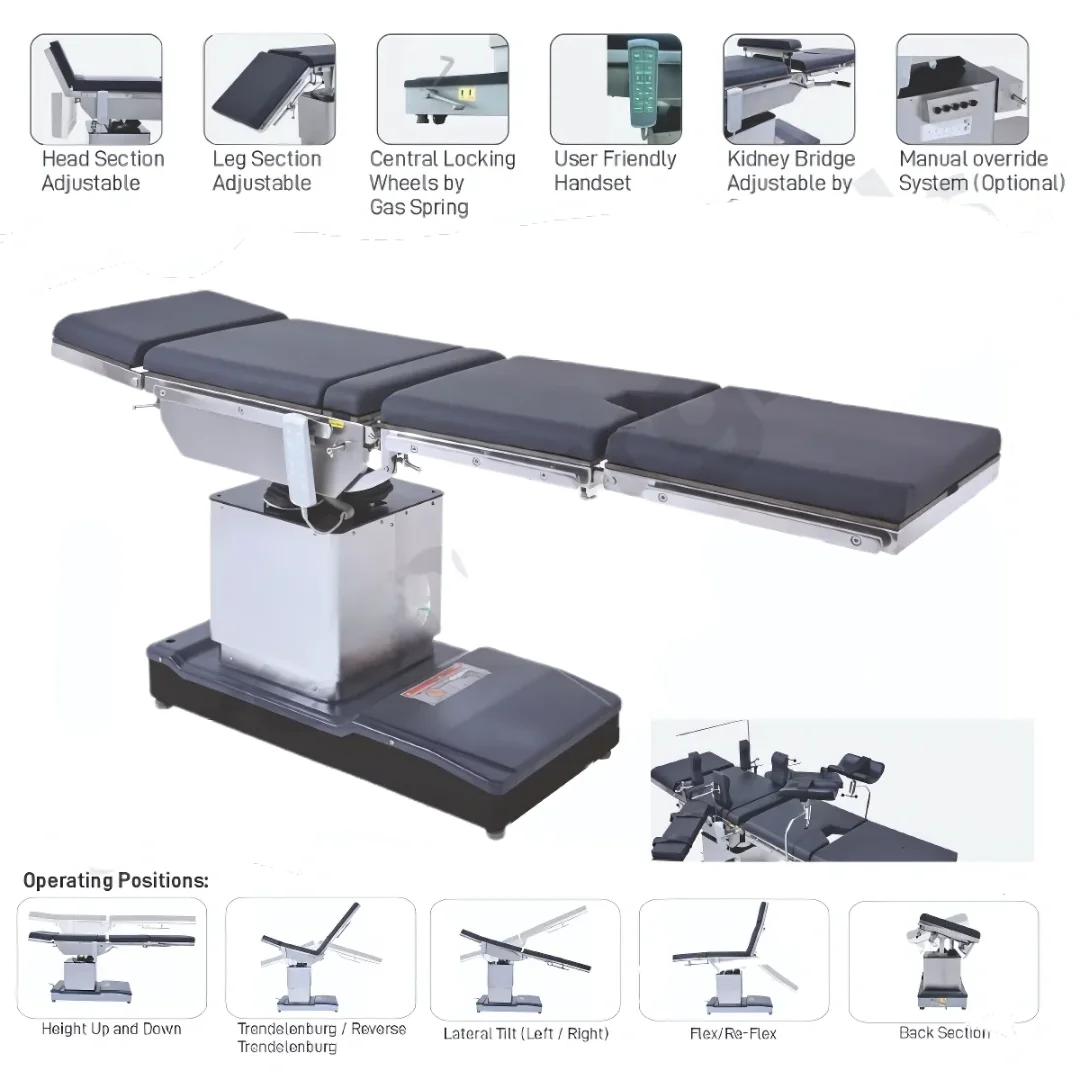

Operating Tables (SSP 2005 MAX)

Operating Tables (SSP 2005 MAX)

The Operating Table SSP 2005 MAX is designed for high-performance surgery with adjustable height and position, ensuring comfort and precision for the patient and surgical team.

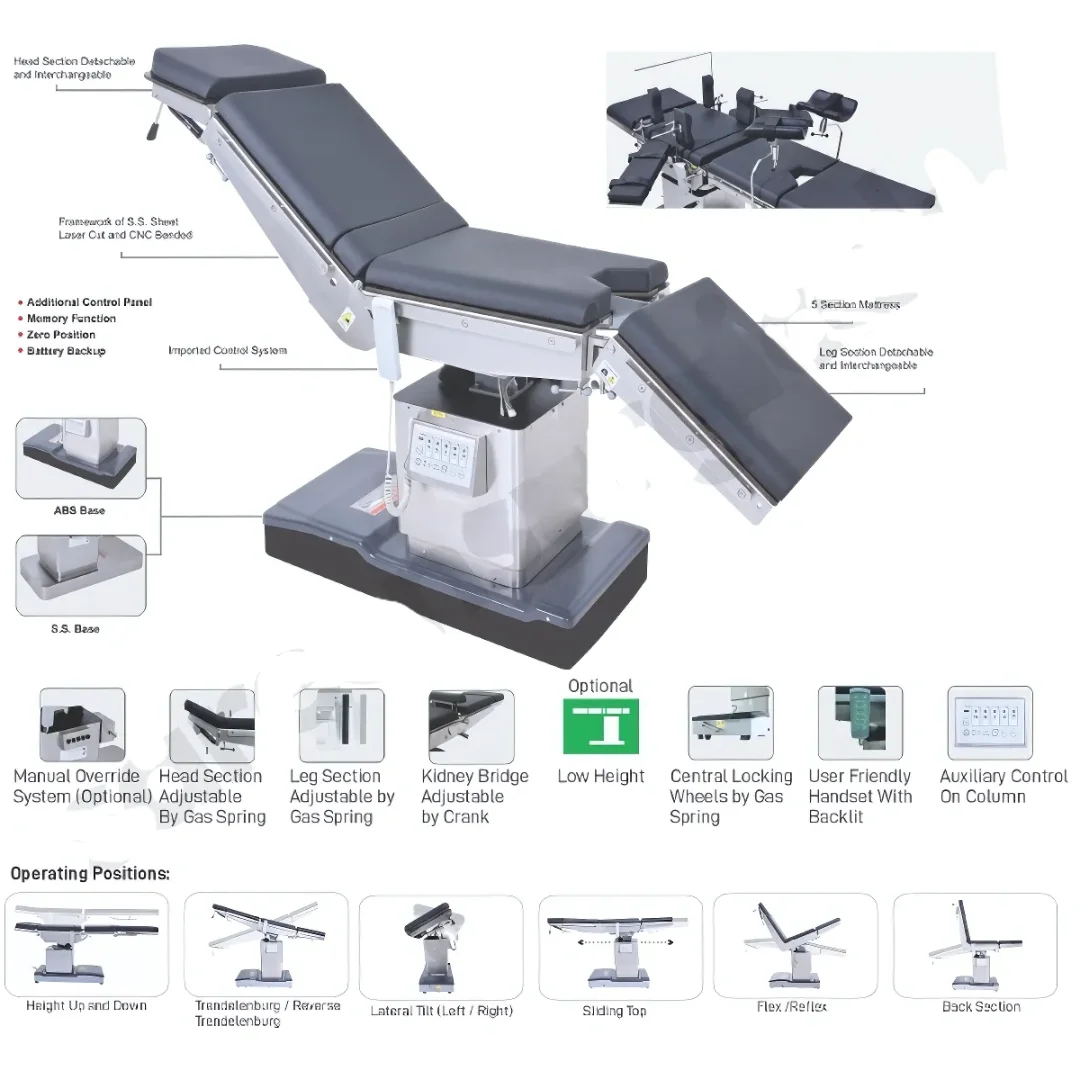

Operating Tables (SSP 2005 PLUS MAX)

Operating Tables (SSP 2005 PLUS MAX)

The Operating Tables (SSP 2005 PLUS MAX) provide advanced features for complex surgeries with maximum flexibility and stability.

Operating Tables (SSP 2009 MAX)

Operating Tables (SSP 2009 MAX)

The Operating Tables (SSP 2009 MAX) offer advanced surgical positioning with a reliable design, built for modern operating rooms.

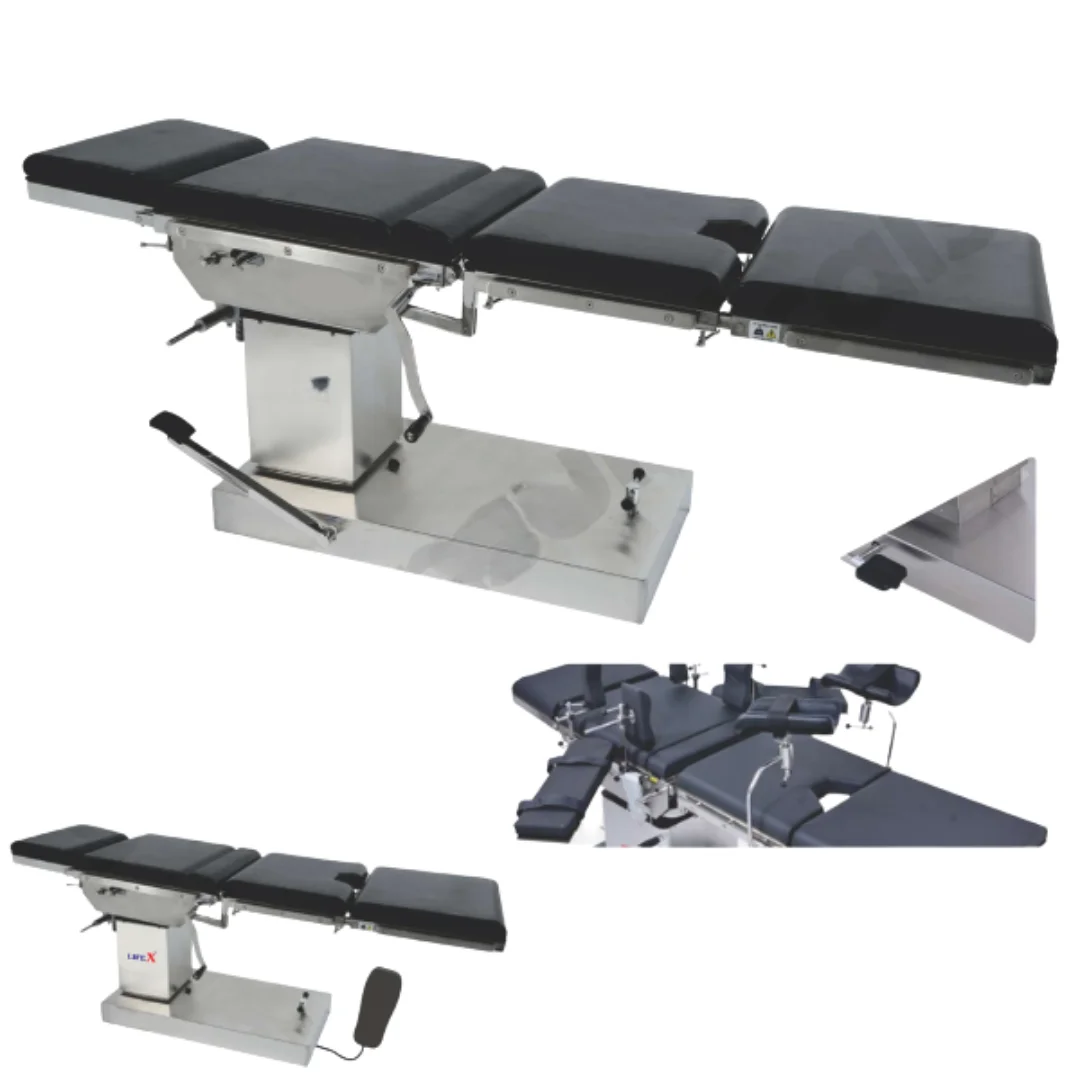

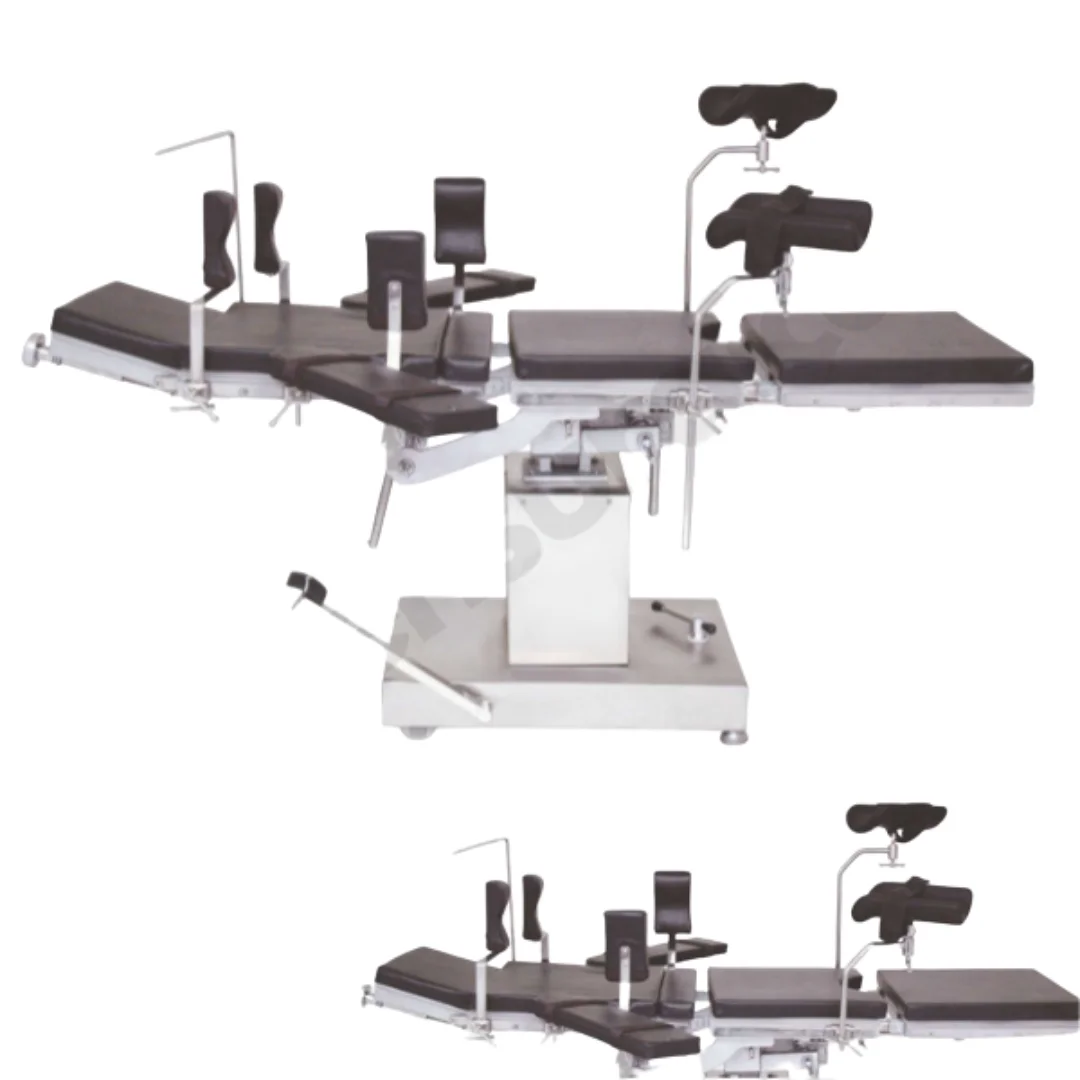

OPERATING TABLES (SSP 2001)

OPERATING TABLES (SSP 2001)

Manually operated function (Height, Trend / Rev. Trend, Lateral Tilt & Back Section) Single Leg and head Section detachable and interchangeable.

OPERATING TABLES (SSP 2003)

OPERATING TABLES (SSP 2003)

Manually operated function (Height, Trend / Rev. Trend, Lateral Tilt & Back Section) Single Leg and head Section detachable and interchangeable.

  • Additional Accessories

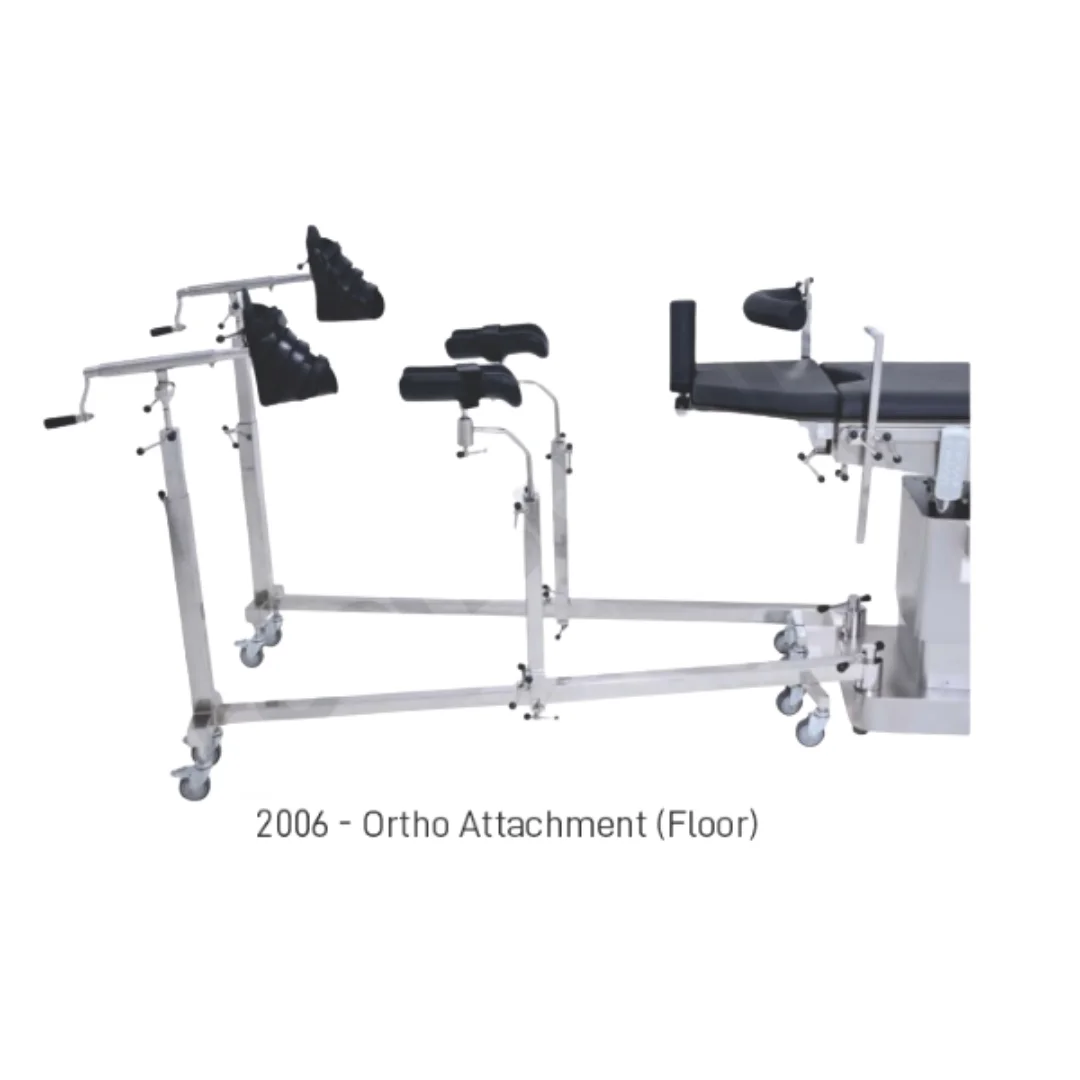

2006- Ortho Attachment (Floor)

2006- Ortho Attachment (Floor)

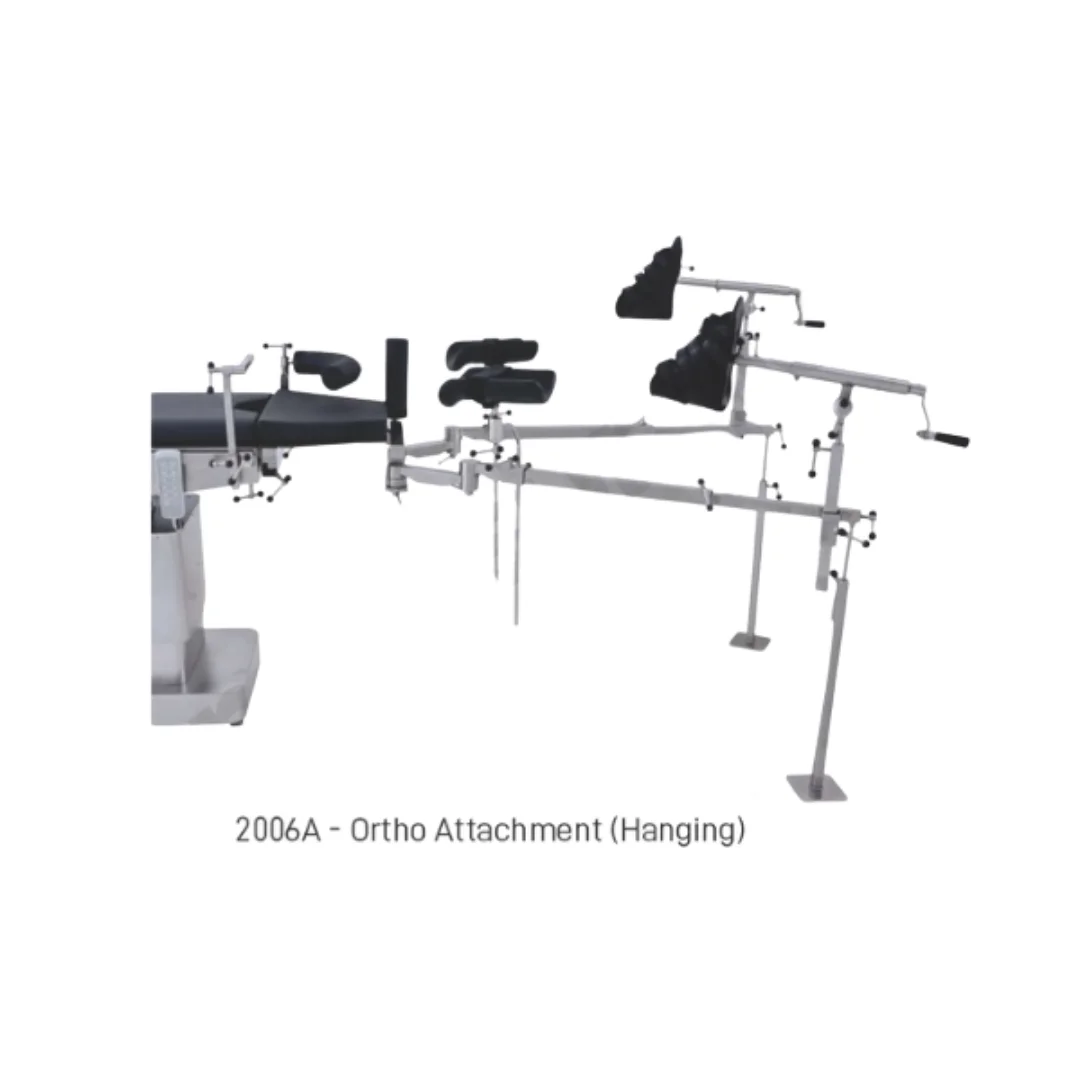

2006A-Ortho Attachment (Hanging)

2006A-Ortho Attachment (Hanging)

AT-01-Hand Surgery Attachment

AT-01-Hand Surgery Attachment

AT-02-Shoulder Surgery Attachment

AT-02-Shoulder Surgery Attachment

AT-03 Arthroscopy Positioning Device

AT-03 Arthroscopy Positioning Device

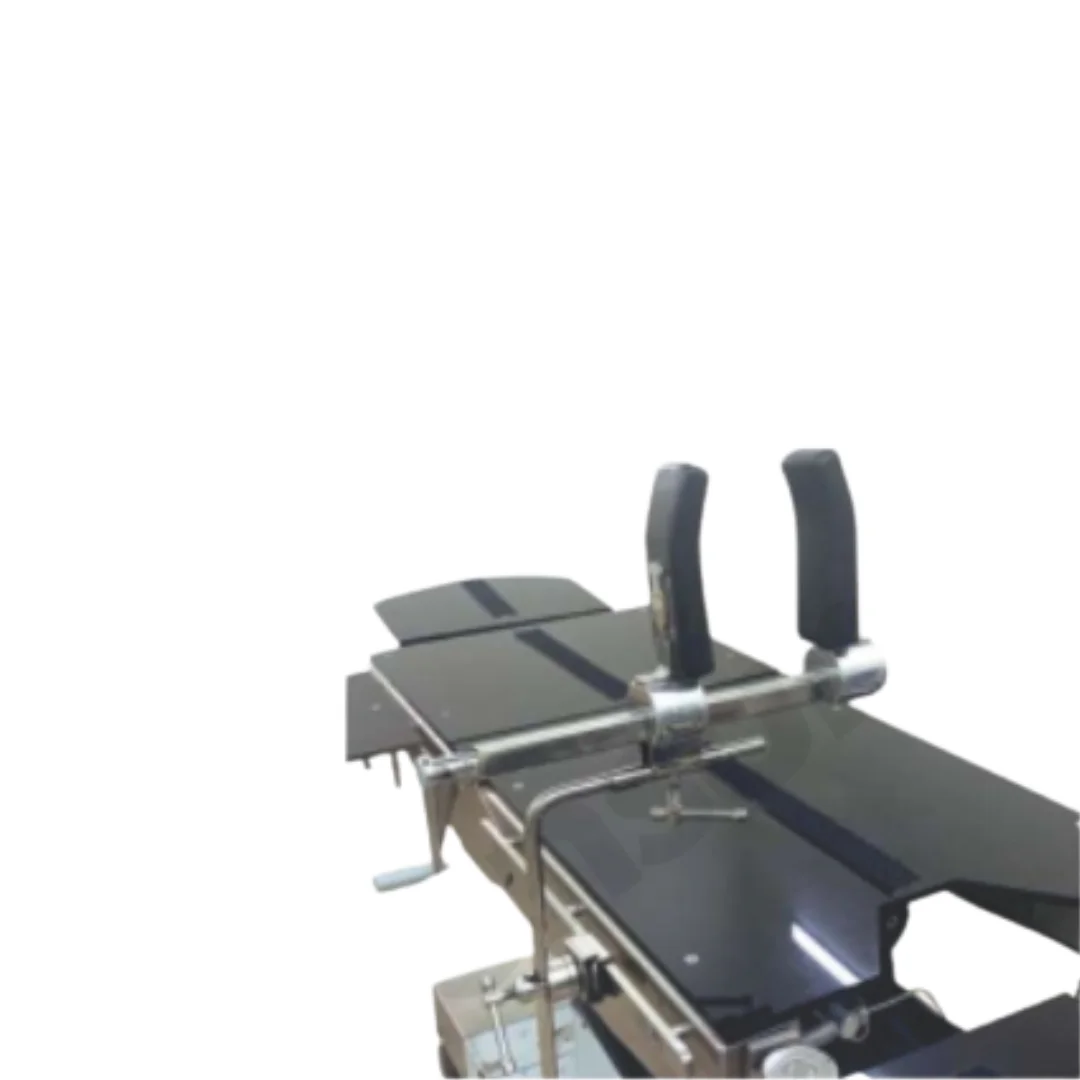

AT-04 Pubis Support

AT-04 Pubis Support

AT-05 Upper Arm Posturing Plate Lateral Position)

AT-05 Upper Arm Posturing Plate Lateral Position)

AT-06-Upper Arm Posturing Plate (Prone Position)

AT-06-Upper Arm Posturing Plate (Prone Position)

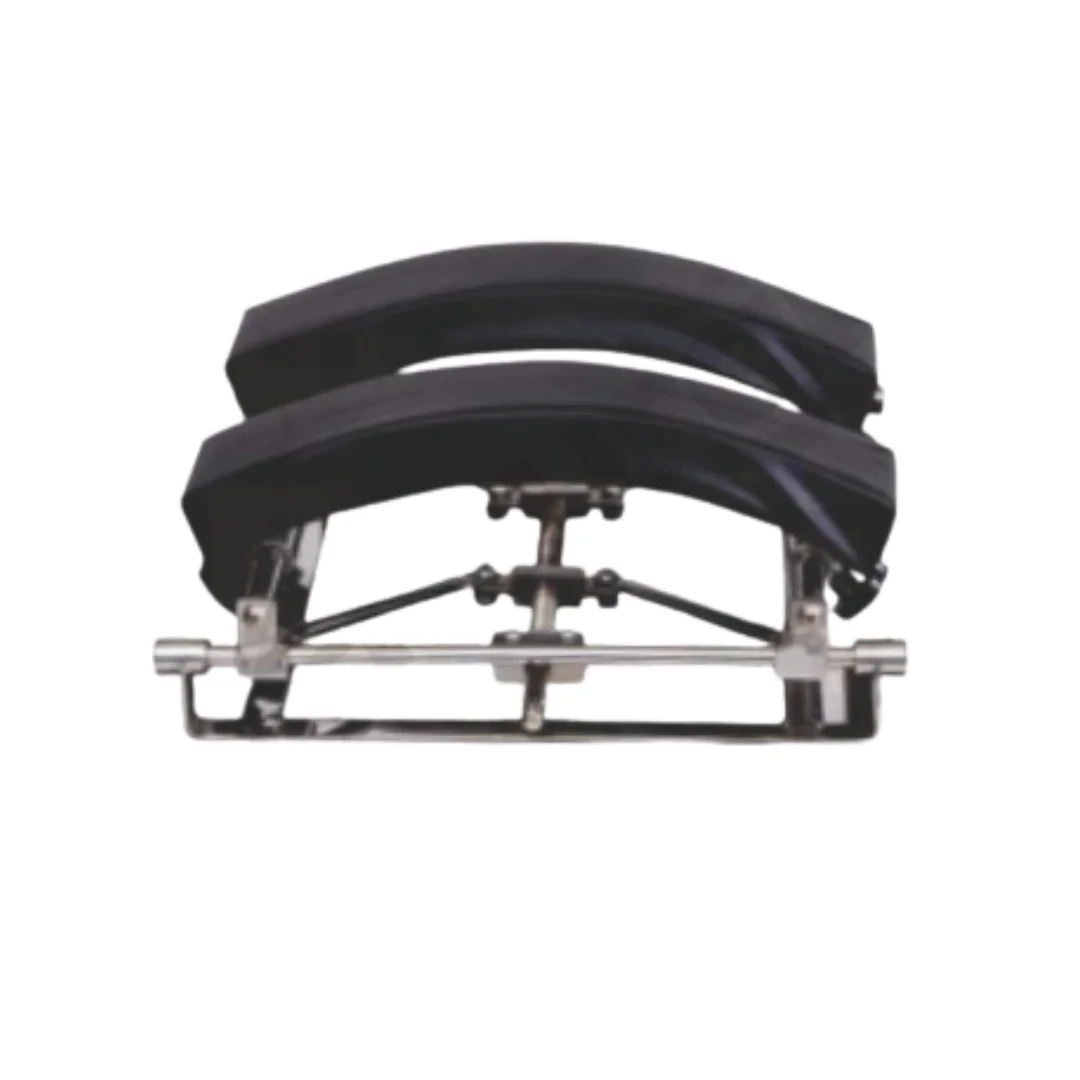

AT-7-Spine Attachment

AT-7-Spine Attachment

AT-08-Foot Plates

AT-08-Foot Plates

AT-09-Lithotomy Stirrups

AT-09-Lithotomy Stirrups

AT-010-Split Away leg section

AT-010-Split Away leg section

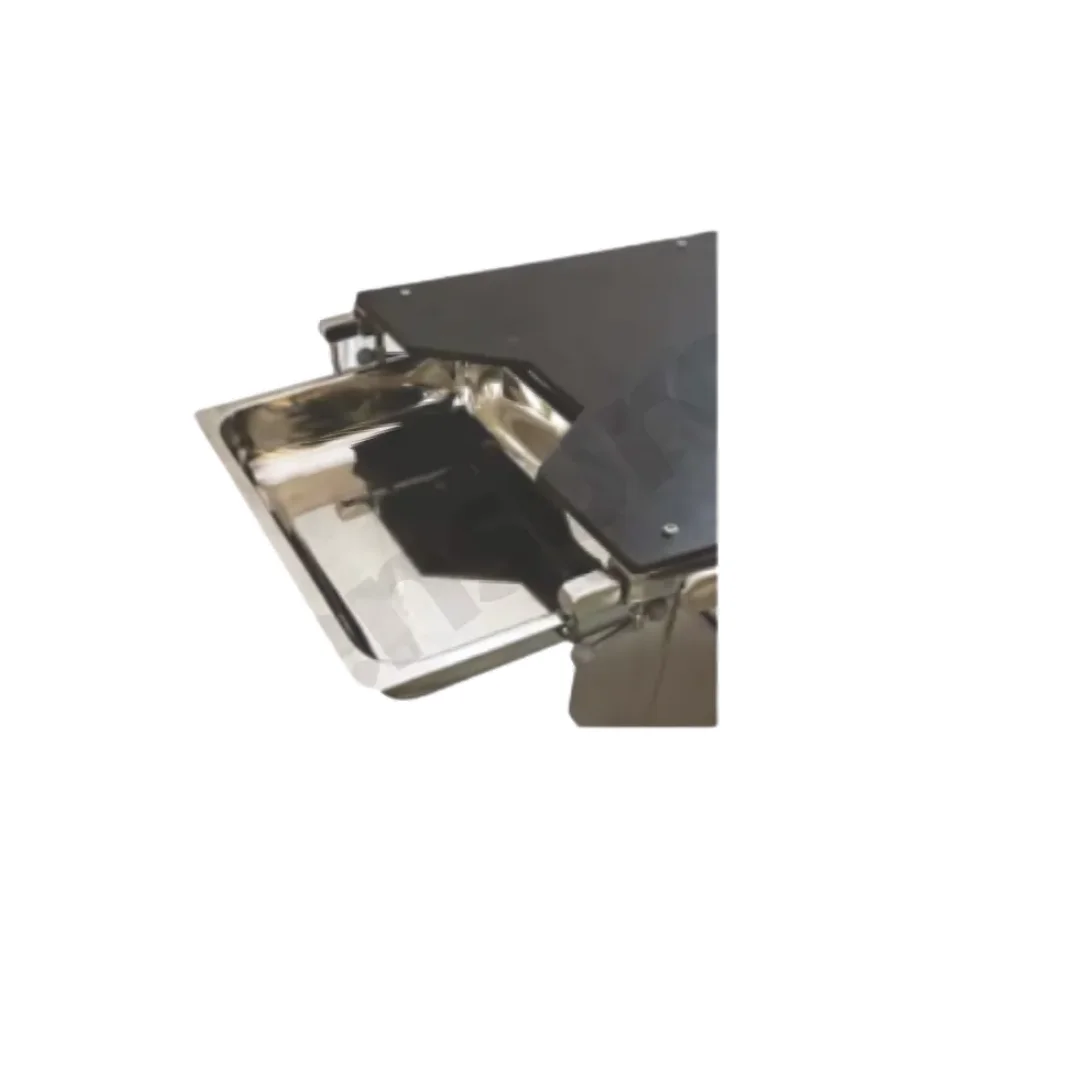

AT-011-Basin Attachment.

AT-011-Basin Attachment.

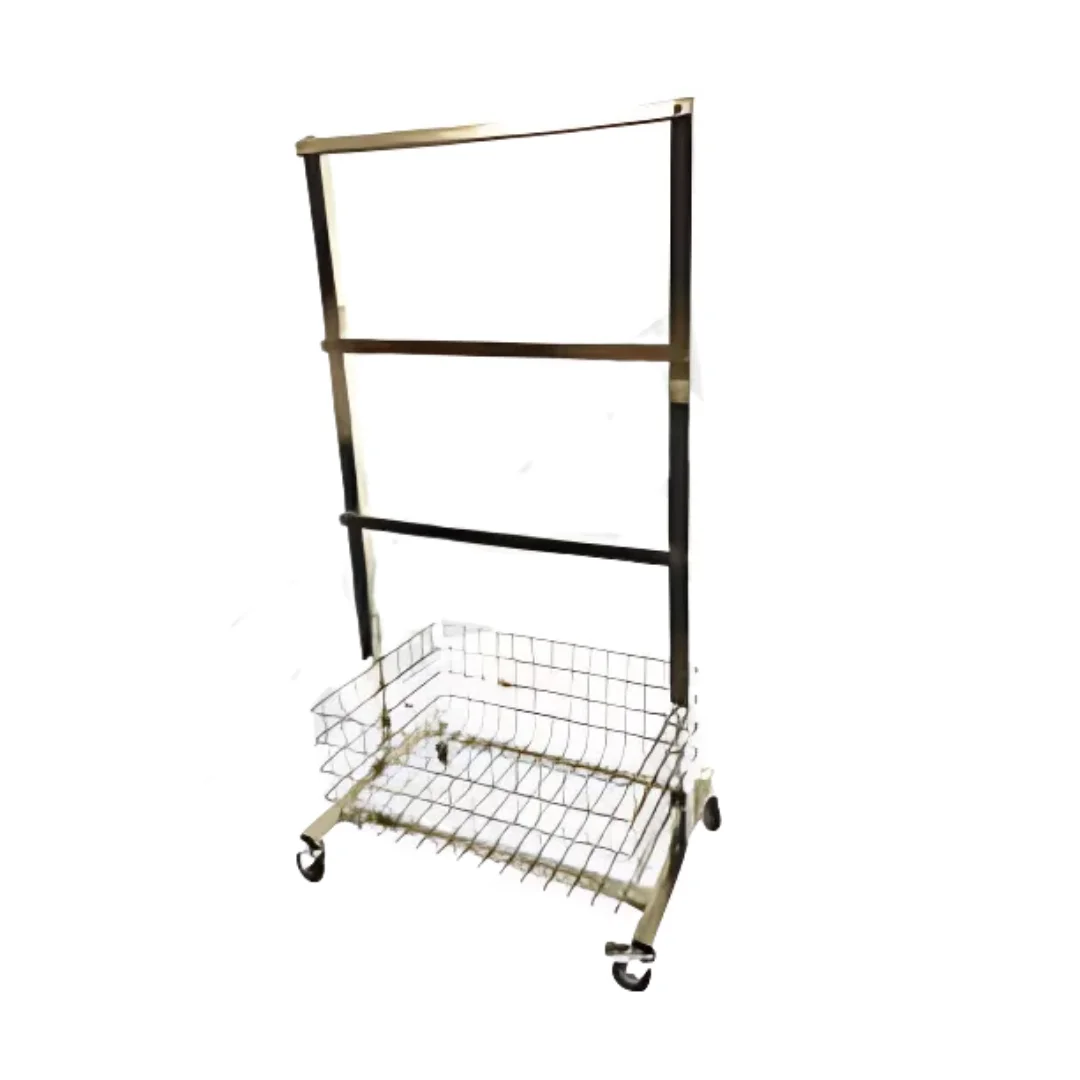

AT-012-Accessories Trotley

AT-012-Accessories Trotley

AT-015-Neuro Sugita Attachment

AT-013-Neuro Mayfield Attachment

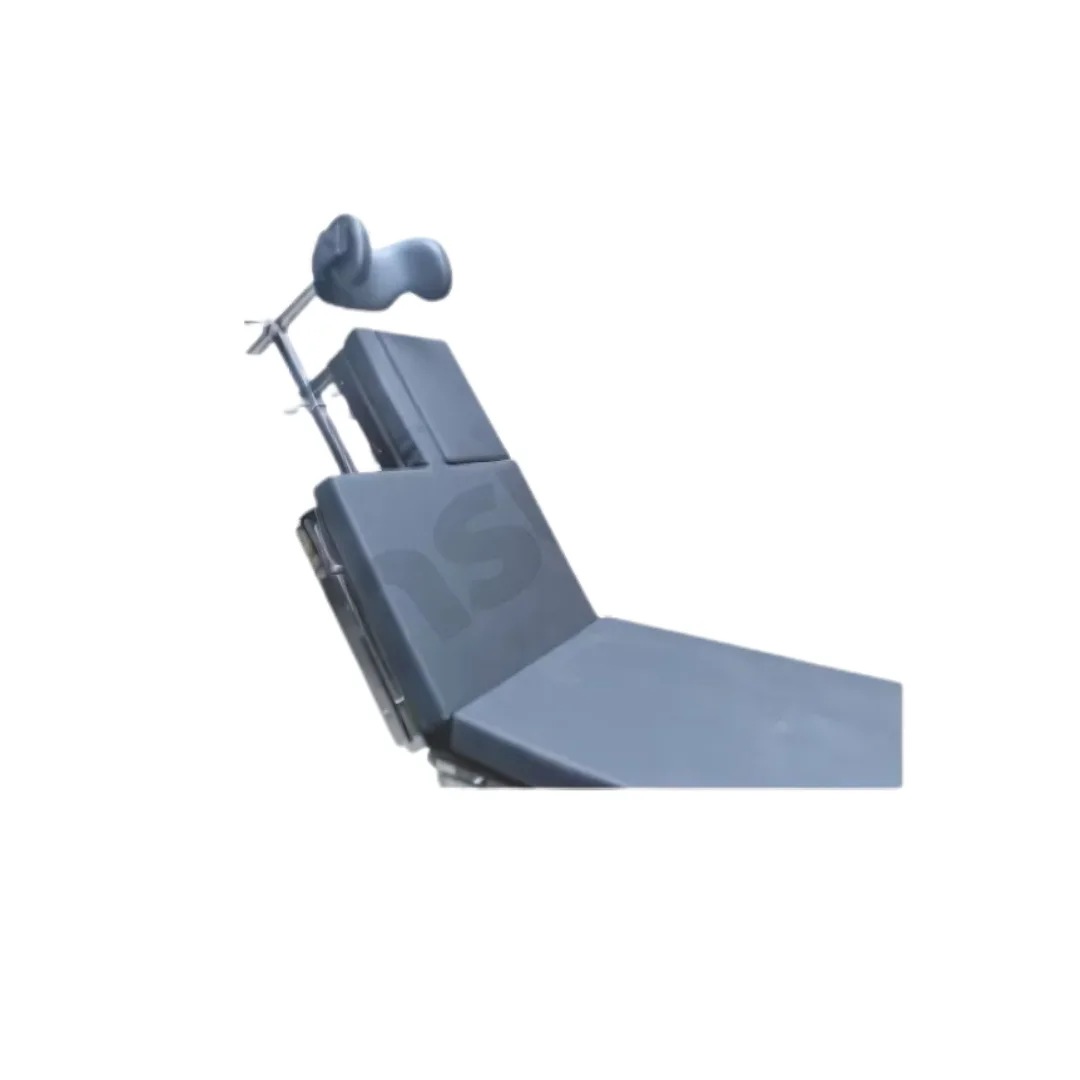

AT-014-Neuro Horse Shoe Attachment

AT-014-Neuro Horse Shoe Attachment

AT-015-Neuro Sugita Attachment

AT-015-Neuro Sugita Attachment

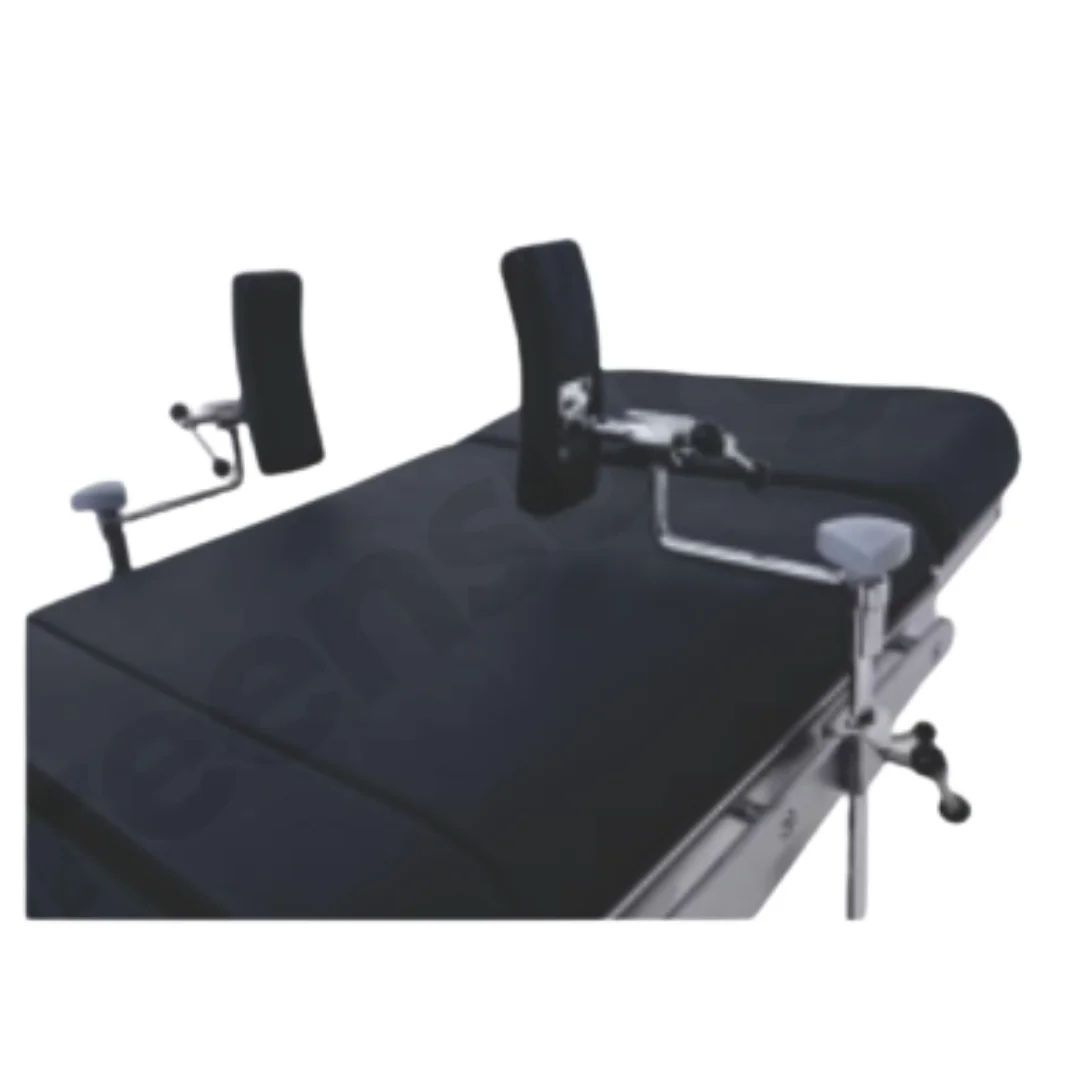

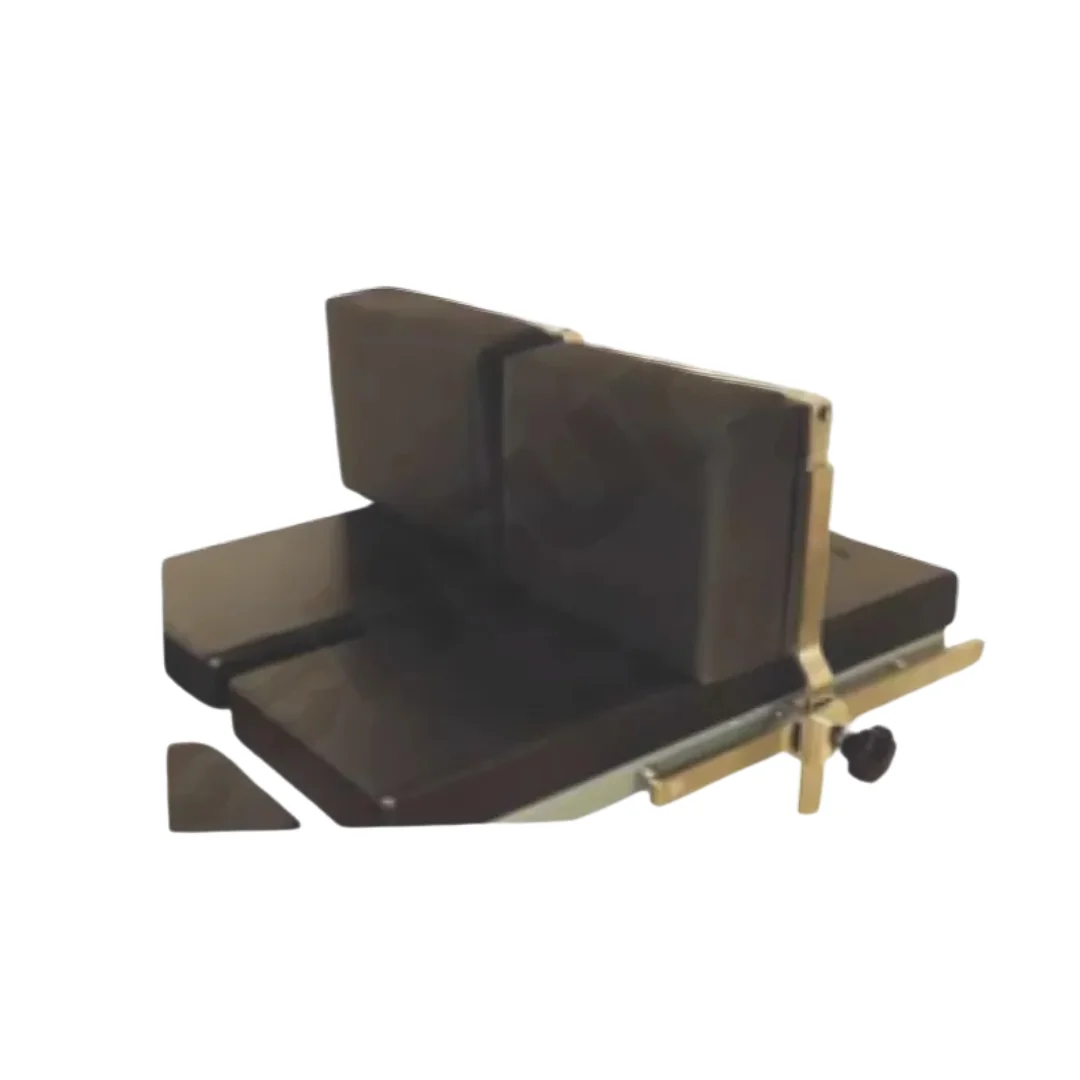

AT-015-Side Supports

AT-015-Side Supports

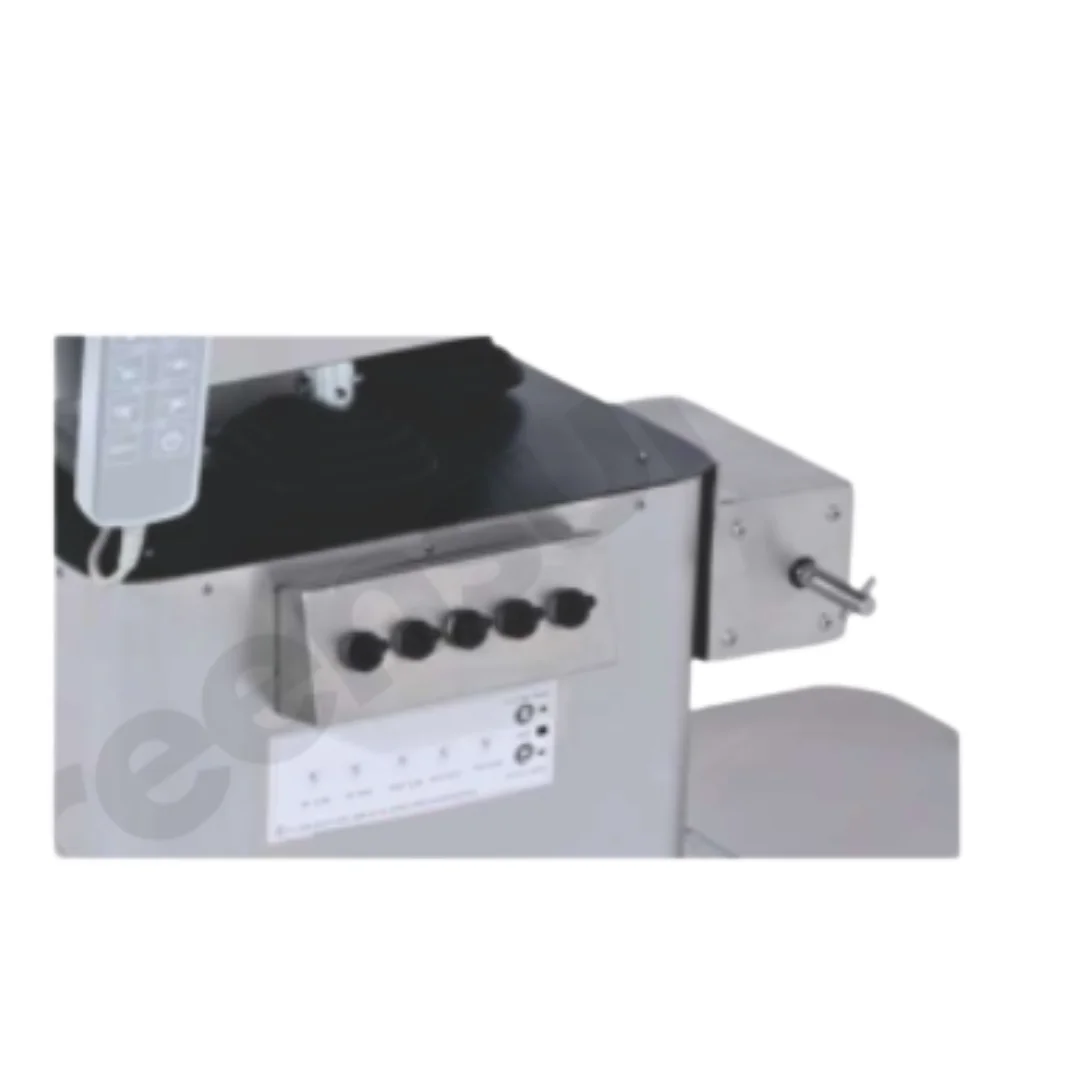

AT-018 Manual Override System

AT-018 Manual Override System

Product Specifications
Specification Value
Table Top Size (L×W)* 1980×530mm
Adjustable Height 780-1030mm
(Without Mattress)* (30.7"-40.5")
Trendelenburg/Reverse Trendelenburg** 25/25
Lateral Tilt** 0.8888888889
Back Section Adjustment** 1.75
Leg Section Adjustment** 90 Down
110mm
Power Supply 220VAC 50Hz
±5% Engineering Tolerance
**2" Engineering Tolerance
L Shaped Anaesthetic Screen 01Pc
Padded Shoulder Support 01 pair
Padded Lateral Support 01 pair
Radio Translucent Armboard with Pad 02 pair
Goepel Knee Crutch with Straps 01 pair
PU Foam Mattress 01 set
Product Specifications
Specification Value
Table Top Size (L X W)* 2020 X 530 mm
Adjustable Height (Without Mattress)* 760-1010 mm (30.7"-40.5")
Trendelenburg/Reverse Trendelenburg** 22/22
Lateral Tilt** 20/20
Head Section Adjustment +26 / 26
Back Section Adjustment** +75 / 15
Leg Section Adjustment*** 90 Down
Kidney Bridge 110 mm
Sliding Top 250 mm
Weight Bearing Capacity 150 mm
Power Supply 220VAC - 50Hz
±5% Engineering Tolerance
** ± 2° Engineering Tolerance

Standard Accessories

Accessory Quantity
L Shaped Anaesthetic Screen 01 Pc
Padded Shoulder Support 01 pair
Padded Lateral Support 01 pair
Radio Translucent Armboard with Pad 02 pair
Goepel Knee Crutch with Straps 01 pair
PU Foam Mattress 01 set
Product Specifications
Specification Value
Table Top Size (L X W)* 1980 X 530 mm
Adjustable Height (Without Mattress)* 780-1030 mm (30.7"-40.5")
Trendelenburg/Reverse Trendelenburg** 25/25
Lateral Tilt** 20/20
Head Section Adjustment +80 / 90
Back Section Adjustment** +75
Leg Section Adjustment** 90 Down
Kidney Bridge 110 mm
Power Supply 220V AC - 50Hz
±5% Engineering Tolerance ** ±
** ± 2° Engineering Tolerance

Standard Accessories:

Accessory Quantity
L Shaped Anaesthetic Screen 01 PC
Padded Shoulder Support 01 Pair
Padded Lateral Support 01 Pair
Radio Translucent Armboard with Pad 02 Pair
Goepel Knee Crutch with Straps 01 Pair
PU Foam Mattress 01 Set
Product Specifications
Specification Value
Table Top Size (L X W)* 1880 X 508 mm
Adjustable Height (Without Mattress)* 774-990 mm (30.5" - 39")
Trendelenburg / Reverse Trendelenburg** 23°/23°
Lateral Tilt** 24°/24°
Head Section Adjustment** +80 / 90
Back Section Adjustment** +70 / 30
Leg Section Adjustment** 90° Down
Kidney Bridge* 110 mm
* ± 5% Engineering Tolerance
** ± 2° Engineering Tolerance

Standard Accessories:

Accessory Quantity
L Shaped Anaesthetic Screen 01 Pc
Padded Shoulder Support 01 Pair
Padded Lateral Support 01 Pair
Radio Translucent Armboard with Pad 02 Pair
Goepel Knee Crutch with Straps 01 Pair
PU Foam Mattress 01 Set
Product Specifications
Specification Value
Table Top Size (L X W)* 1990 X 575 mm
Adjustable Height (Without Mattress)* 740-965 mm (29"-38")
Trendelenburg / Reverse Trendelenburg** 20°/24°
Lateral Tilt** 24°/24°
Head Section Adjustment** +80 / 90
Back Section Adjustment** +70 / 30
Leg Section Adjustment** 90° Down
Kidney Bridge* 110 mm
* ± 5% Engineering Tolerance
** ± 2° Engineering Tolerance

Standard Accessories:

Accessory Quantity
L Shaped Anaesthetic Screen 01 Pc
Padded Shoulder Support 01 Pair
Padded Lateral Support 01 Pair
Radio Translucent Armboard with Pad 02 Pair
Goepel Knee Crutch with Straps 01 Pair
PU Foam Mattress 01 Set
